import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import lightgbm as lgb
import re
from sklearn.model_selection import train_test_split, ParameterGrid
from sklearn.ensemble import RandomForestClassifier
from sklearn.metrics import ConfusionMatrixDisplay, f1_score, classification_report
from joblib import Parallel, delayed

DATA_PATH = "../../data/"
MVG_FILE = "subway_only_dedup.parquet"
EVENTS_FILE = "events.csv"
HOLIDAYS_FILE = "public_holiday.csv"
ALLIANZ_FILE = "allianz_arena_events.csv"
WEATHER_FILE = "weather_2024-2025.csv"

def load_data(path, mvg_file, events_file, holidays_file, allianz_file, weather_file):
    mvg_data = pd.read_parquet(path + mvg_file)
    events_df = pd.read_csv(path + events_file, parse_dates=['start_date', 'end_date'])
    public_holiday_df = pd.read_csv(path + holidays_file, parse_dates=['date'])
    allianz_arena_df = pd.read_csv(path + allianz_file, parse_dates=['date'])
    weather_df = pd.read_csv(path + weather_file, parse_dates=['date'])
    return mvg_data, events_df, public_holiday_df, allianz_arena_df, weather_df

mvg_data_orig, events_df, public_holiday_df, allianz_arena_df, weather_df = load_data(
    DATA_PATH, MVG_FILE, EVENTS_FILE, HOLIDAYS_FILE, ALLIANZ_FILE, WEATHER_FILE
)

mvg_data = mvg_data_orig

mvg_data = mvg_data.drop(columns=['transportType', 'realtimeDepartureTime', 'timestamp'])
mvg_data = mvg_data[mvg_data.realtime]
mvg_data['onTime'] = mvg_data['delayInMinutes'] == 0

mvg_datetime = pd.to_datetime(mvg_data['plannedDepartureTime']).dt
mvg_data['plannedDepartureTime_dt'] = pd.to_datetime(mvg_data['plannedDepartureTime'])

#mvg_data['hourOfDay'] = mvg_datetime.hour

mvg_data['minuteOfDay'] = mvg_datetime.hour * 60 + mvg_datetime.minute
# encode minute of day as 23:00 and 00:00 are far apart but close in reality
mvg_data['minuteSin'] = np.sin(2 * np.pi * mvg_data['minuteOfDay'] / 1440)
mvg_data['minuteCos'] = np.cos(2 * np.pi * mvg_data['minuteOfDay'] / 1440)


mvg_data['dayOfWeek'] = mvg_datetime.day_of_week # Monday=0, Sunday=6
#mvg_data['dayOfYear'] = mvg_datetime.day_of_year

mvg_data['isRushHour'] = mvg_datetime.hour.between(7, 9) | mvg_datetime.hour.between(16, 18)
mvg_data['isWeekend'] = mvg_data['dayOfWeek'] >= 5 # Saturday=5, Sunday=6

# remove negative delay for bucketing
mvg_data = mvg_data[mvg_data['delayInMinutes'] >= 0]

# only use u6
mvg_data = mvg_data[mvg_data['label'] == 'U6']

# include events
mvg_data['isMajorEvent'] = False
for index, event in events_df.iterrows():
    event_mask = (
        (mvg_data['plannedDepartureTime_dt'].dt.date >= event['start_date'].date()) &
        (mvg_data['plannedDepartureTime_dt'].dt.date <= event['end_date'].date())
    )
    mvg_data.loc[event_mask, 'isMajorEvent'] = True
print("\nEvent day departures vs. normal day departures:")
print(mvg_data['isMajorEvent'].value_counts())


# set if public holiday is true
holiday_dates = set(public_holiday_df['date'].dt.date)
mvg_data['isHoliday'] = mvg_data['plannedDepartureTime_dt'].dt.date.isin(holiday_dates)
print("\nHoliday departures vs. normal day departures:")
print(mvg_data['isHoliday'].value_counts())

# include allianz arena events
allianz_arena_dates = set(allianz_arena_df['date'].dt.date)
mvg_data['isAllianzArenaEvent'] = mvg_data['plannedDepartureTime_dt'].dt.date.isin(allianz_arena_dates)
print("\nAllianz Arena Event departures vs. normal day departures:")
print(mvg_data['isAllianzArenaEvent'].value_counts())

#include weather
weather_df['date'] = pd.to_datetime(weather_df['date'], format='%d.%m.%Y')
mvg_data = pd.merge(
    mvg_data,
    weather_df,
    how='left',
    left_on=mvg_data['plannedDepartureTime_dt'].dt.date,
    right_on=weather_df['date'].dt.date
)
mvg_data = mvg_data.drop(columns=['key_0', 'date'])
nan_weather_rows = mvg_data['tempAvg'].isnull().sum()
if nan_weather_rows > 0:
    print(f"Warning: {nan_weather_rows} rows did not have matching weather data and contain NaNs.")


#bins = [float('-inf'), 2, np.inf]
#labels = ['On Time', 'Delayed']
#mvg_data['delayCategory'] = pd.cut(mvg_data['delayInMinutes'], bins=bins, labels=labels)

print("New binary class distribution:\n", mvg_data['onTime'].value_counts())

Event day departures vs. normal day departures:
isMajorEvent
False    3204709
True      249221
Name: count, dtype: int64

Holiday departures vs. normal day departures:
isHoliday
False    3386613
True       67317
Name: count, dtype: int64

Allianz Arena Event departures vs. normal day departures:
isAllianzArenaEvent
False    3153279
True      300651
Name: count, dtype: int64
New binary class distribution:
 onTime
True     3239816
False     214114
Name: count, dtype: int64

mvg_data.sample(5)

	station	plannedDepartureTime	realtime	delayInMinutes	label	destination	onTime	plannedDepartureTime_dt	minuteOfDay	minuteSin	...	isMajorEvent	isHoliday	isAllianzArenaEvent	tempMin	tempMax	tempAvg	rainfall	sunHours	windMax	snowfall
412014	de:09162:1430	2025-08-02 15:30:00+00:00	True	0	U6	Münchner Freiheit	True	2025-08-02 15:30:00+00:00	930	-0.793353	...	False	False	True	12.9	17.3	14.6	23.6	0.1	28.0	0
3337806	de:09162:540	2025-02-27 18:55:00+00:00	True	6	U6	Goetheplatz	False	2025-02-27 18:55:00+00:00	1135	-0.971342	...	False	False	False	1.6	7.2	3.8	0.4	3.3	33.0	0
277398	de:09162:1340	2024-11-19 06:46:00+00:00	True	0	U6	Klinikum Großhadern	True	2024-11-19 06:46:00+00:00	406	0.979925	...	False	False	False	6.5	12.5	9.8	12.9	1.0	63.0	0
3078564	de:09184:480	2024-03-21 18:34:00+00:00	True	0	U6	Garching, Forschungszentrum	True	2024-03-21 18:34:00+00:00	1114	-0.989016	...	False	False	False	7.3	14.7	10.1	5.5	2.1	49.0	0
2579365	de:09162:80	2025-03-16 07:08:00+00:00	True	0	U6	Garching, Forschungszentrum	True	2025-03-16 07:08:00+00:00	428	0.956305	...	False	False	False	1.6	4.4	3.2	0.3	0.0	32.0	0

5 rows × 24 columns

plt.figure(figsize=(8, 8))
scatter = plt.scatter(
    mvg_data['minuteSin'],
    mvg_data['minuteCos'],
    c=mvg_data['minuteOfDay'], # Color points by the original minute of the day
    cmap='viridis'            # Use a nice color map
)

plt.gca().set_aspect('equal', adjustable='box')

plt.title('Cyclical Encoding of Minute of Day')
plt.xlabel('Sine(Minute of Day)')
plt.ylabel('Cosine(Minute of Day)')

# Add a colorbar to show what the colors mean
cbar = plt.colorbar(scatter)
cbar.set_label('Minute of Day')

plt.grid(True)
plt.show()

mvg_data.sample(5)

	station	plannedDepartureTime	realtime	delayInMinutes	label	destination	onTime	plannedDepartureTime_dt	minuteOfDay	minuteSin	...	isMajorEvent	isHoliday	isAllianzArenaEvent	tempMin	tempMax	tempAvg	rainfall	sunHours	windMax	snowfall
1981834	de:09162:50	2024-05-28 17:37:00+00:00	True	0	U6	Klinikum Großhadern	True	2024-05-28 17:37:00+00:00	1057	-0.994969	...	False	False	False	10.5	16.7	13.8	0.0	3.4	33.0	0
3255570	de:09162:540	2024-10-07 17:01:00+00:00	True	0	U6	Klinikum Großhadern	True	2024-10-07 17:01:00+00:00	1021	-0.967046	...	False	False	False	9.7	23.3	15.1	0.0	8.0	22.0	0
470431	de:09162:1470	2025-03-29 23:12:00+00:00	True	0	U6	Fürstenried West	True	2025-03-29 23:12:00+00:00	1392	-0.207912	...	False	False	True	6.1	9.2	7.7	4.0	0.0	32.0	0
973839	de:09162:1130	2024-02-27 08:36:00+00:00	True	0	U6	Garching, Forschungszentrum	True	2024-02-27 08:36:00+00:00	516	0.777146	...	False	False	False	3.0	8.0	5.3	0.0	1.1	20.0	0
1494489	de:09162:420	2024-10-16 14:19:00+00:00	True	0	U6	Klinikum Großhadern	True	2024-10-16 14:19:00+00:00	859	-0.569997	...	False	False	False	9.2	17.2	12.3	0.0	2.7	29.0	0

5 rows × 24 columns

features = mvg_data.drop(['delayInMinutes', 'onTime', 'plannedDepartureTime', 'plannedDepartureTime_dt', 'realtime', 'minuteOfDay', 'onTime', 'tempMax', 'tempMin'], axis=1)
target = mvg_data['onTime']

features_encoded = pd.get_dummies(features, columns=['station', 'label', 'destination'])
features_encoded.columns = [re.sub(r'[^A-Za-z0-9_]+', '_', col) for col in features_encoded.columns]
print(f"Columns after sanitization: {features_encoded.shape[1]}")
features_encoded = features_encoded.loc[:, ~features_encoded.columns.duplicated()]
print(f"Columns after removing duplicates: {features_encoded.shape[1]}")


print(f"Total rows in the full dataset: {len(features_encoded)}")

X_sample, _, y_sample, _ = train_test_split(features_encoded, target, train_size=5_000, random_state=0, stratify=target)
X_train_sample, X_test_sample, y_train_sample, y_test_sample = train_test_split(X_sample, y_sample, test_size=0.3, random_state=0)
X_val_sample, X_test_sample, y_val_sample, y_test_sample = train_test_split(X_test_sample, y_test_sample, test_size=0.5, random_state=0)

print(f"\nSampled training set size: {len(X_train_sample)}")
print(f"Sampled validation set size: {len(X_val_sample)}")
print(f"Sampled test set size: {len(X_test_sample)}")


X_train_full, X_test_full, y_train_full, y_test_full = train_test_split(features_encoded, target, test_size=0.3, random_state=0)
X_val_full, X_test_full, y_val_full, y_test_full = train_test_split(X_test_full, y_test_full, test_size=0.5, random_state=0)

print(f"\nFull training set size: {len(X_train_full)}")
print(f"Full validation set size: {len(X_val_full)}")
print(f"Full test set size: {len(X_test_full)}")

train_data_full = pd.concat([X_train_full, y_train_full], axis=1)
target_column_name = y_train_full.name

ontime_samples = train_data_full[train_data_full[target_column_name]]
delay_samples = train_data_full[~train_data_full[target_column_name]]

ontime_downsampled = ontime_samples.sample(n=len(delay_samples), random_state=0)

train_data_balanced = pd.concat([ontime_downsampled, delay_samples])

X_train_balanced = train_data_balanced.drop(columns=[target_column_name])
y_train_balanced = train_data_balanced[target_column_name]

print("\nOriginal full training class distribution:")
print(y_train_full.value_counts())
print("\nBalanced training class distribution:")
print(y_train_balanced.value_counts())

Columns after sanitization: 73
Columns after removing duplicates: 72
Total rows in the full dataset: 3453930

Sampled training set size: 3500
Sampled validation set size: 750
Sampled test set size: 750

Full training set size: 2417751
Full validation set size: 518089
Full test set size: 518090

Original full training class distribution:
onTime
True     2268021
False     149730
Name: count, dtype: int64

Balanced training class distribution:
onTime
True     149730
False    149730
Name: count, dtype: int64

def train_and_evaluate_rf(params, X_train, y_train, X_val, y_val):
    """Trains a Random Forest and returns both train and validation F1-scores."""
    model = RandomForestClassifier(
        **params,
        n_jobs=-1,
        random_state=0
    )
    #model = lgb.LGBMClassifier(
    #    random_state=0,
    #    n_jobs=-1,
    #    **params
    #)
    model.fit(X_train, y_train)

    val_pred = model.predict(X_val)
    train_pred = model.predict(X_train)

    # Calculate F1-score specifically for the 'Delayed' class (which is 'False')
    # This is the metric we want to maximize to improve precision
    train_f1 = f1_score(y_train, train_pred, pos_label=False)

    # Calculate F1-score specifically for the 'Delayed' class (which is 'False')
    # This is the metric we want to maximize to improve precision
    val_f1 = f1_score(y_val, val_pred, pos_label=False)

    return params, train_f1, val_f1

train_data_sample = pd.concat([X_train_sample, y_train_sample], axis=1)
target_column_name_sample = y_train_sample.name

ontime_samples_s = train_data_sample[train_data_sample[target_column_name_sample]]
delay_samples_s = train_data_sample[~train_data_sample[target_column_name_sample]]
ontime_downsampled_s = ontime_samples_s.sample(n=len(delay_samples_s), random_state=0)
train_data_balanced_s = pd.concat([ontime_downsampled_s, delay_samples_s])

X_train_sample_balanced = train_data_balanced_s.drop(columns=[target_column_name_sample])
y_train_sample_balanced = train_data_balanced_s[target_column_name_sample]


#estimators_to_test = range(10, 501, 10)
param_grid_definition = {
    'n_estimators': range(10, 501, 10),
    'min_samples_leaf': [1, 2, 3, 4, 5, 10, 20],
    'max_depth': [10, 15, 20, None],
}
params_to_test = list(ParameterGrid(param_grid_definition))
print(f"Generated {len(params_to_test)} parameter combinations to test.")
print("First 3 combinations:")
print(params_to_test[:3])


results = Parallel(n_jobs=-1)(
    delayed(train_and_evaluate_rf)(
        params,
        X_train_sample_balanced,
        y_train_sample_balanced,
        X_val_sample,
        y_val_sample
    ) for params in params_to_test
)
results_df = pd.DataFrame(results, columns=['params', 'train_f1_score', 'validation_f1_score'])

Generated 1400 parameter combinations to test.
First 3 combinations:
[{'max_depth': 10, 'min_samples_leaf': 1, 'n_estimators': 10}, {'max_depth': 10, 'min_samples_leaf': 1, 'n_estimators': 20}, {'max_depth': 10, 'min_samples_leaf': 1, 'n_estimators': 30}]

best_params, _, best_val_f1_score = max(results, key=lambda item: item[2])

print("\n--- Hyperparameter Tuning Complete ---")
print(f"Best Validation F1-Score (for 'Delayed' class): {best_val_f1_score:.4f}")
print("Best Parameters Found:")
print(best_params)

def format_params(p_dict):
    return (f"n_est:{p_dict.get('n_estimators', 'N/A')}, "
            f"min_samples_leaf:{p_dict.get('min_samples_leaf', 'N/A')}, "
            f"depth:{p_dict.get('max_depth', 'N/A')}")
results_df['param_label'] = results_df['params'].apply(format_params)

df_melted = results_df.melt(
    id_vars='param_label',
    value_vars=['train_f1_score', 'validation_f1_score'],
    var_name='score_type',
    value_name='f1_score'
)

plt.figure(figsize=(12, 8))
sns.barplot(x='f1_score', y='param_label', hue='score_type', data=df_melted, orient='h')

plt.title('LightGBM Tuning: Training vs. Validation F1-Scores')
plt.xlabel("F1-Score for 'Delayed' Class")
plt.ylabel("Parameter Combination")
plt.legend(title='Score Type')
plt.grid(axis='x', linestyle='--', alpha=0.7)
plt.show()

--- Hyperparameter Tuning Complete ---
Best Validation F1-Score (for 'Delayed' class): 0.2018
Best Parameters Found:
{'max_depth': 20, 'min_samples_leaf': 2, 'n_estimators': 160}

#best_parameter = max(validation_results, key=validation_results.get)
#
#best_accuracy = validation_results[best_parameter]
#
#print(f"The best parameter is: {best_parameter}")
#print(f"With a validation accuracy of: {best_accuracy:.4f}")

final_model = RandomForestClassifier(
    **best_params,
    n_jobs=-1,
    verbose=1,
    random_state=0
)
#final_model = lgb.LGBMClassifier(
#    **best_params,
#    n_jobs=-1,
#    verbose=-1,
#    random_state=0
#)

print(f"Training final model on {len(X_train_balanced)} samples...")
final_model.fit(X_train_balanced, y_train_balanced)

Training final model on 299460 samples...

[Parallel(n_jobs=-1)]: Using backend ThreadingBackend with 16 concurrent workers.
[Parallel(n_jobs=-1)]: Done  18 tasks      | elapsed:    1.0s
[Parallel(n_jobs=-1)]: Done 160 out of 160 | elapsed:    5.1s finished

RandomForestClassifier(max_depth=20, min_samples_leaf=2, n_estimators=160,
                       n_jobs=-1, random_state=0, verbose=1)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

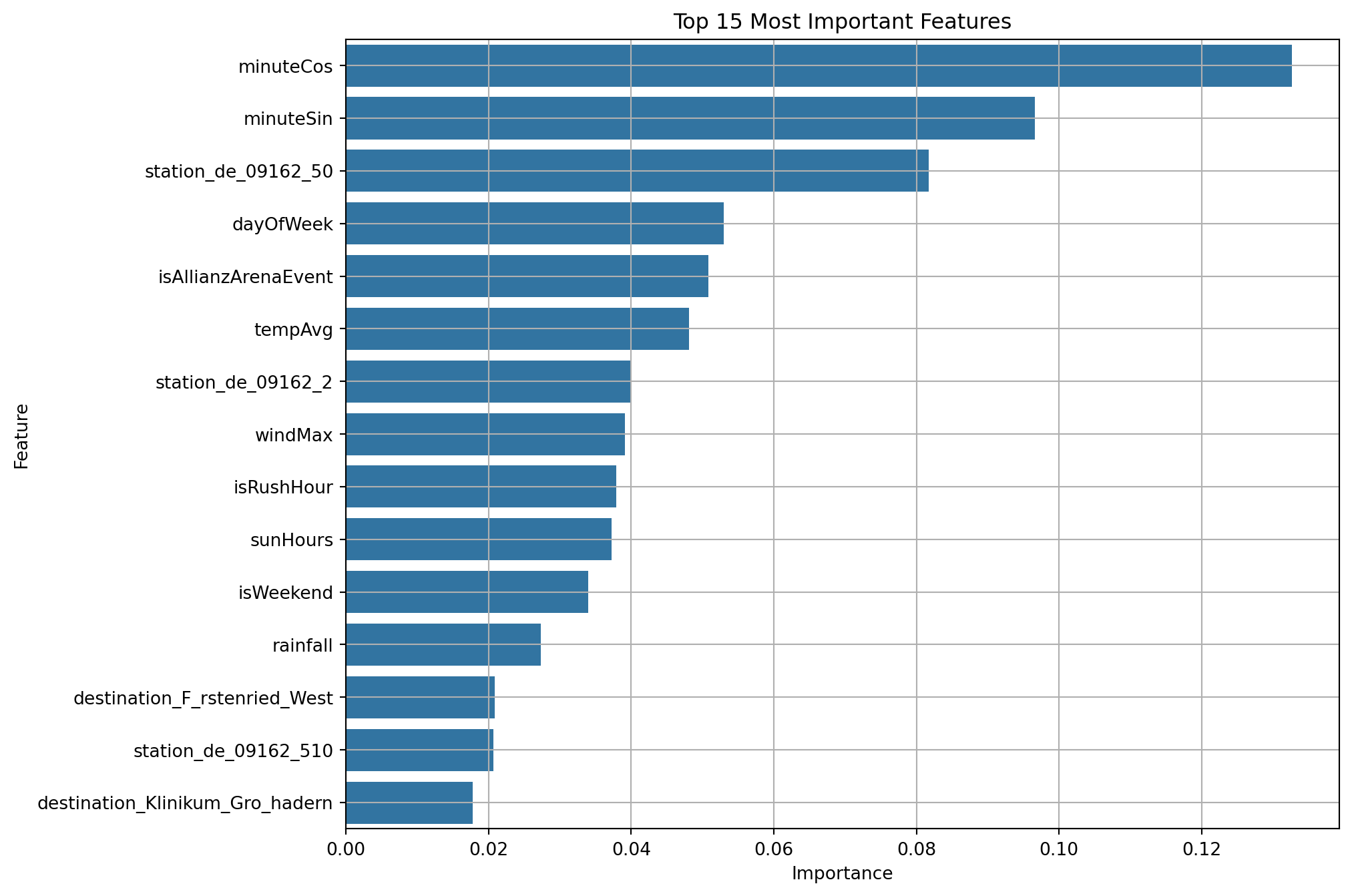

importances = final_model.feature_importances_
feature_names = X_train_full.columns

feature_importance_df = pd.DataFrame({'feature': feature_names, 'importance': importances})

feature_importance_df = feature_importance_df.sort_values(by='importance', ascending=False).head(15)

plt.figure(figsize=(10, 8))
sns.barplot(x='importance', y='feature', data=feature_importance_df)
plt.title('Top 15 Most Important Features')
plt.xlabel('Importance')
plt.ylabel('Feature')
plt.grid(True)
plt.show()

y_pred = final_model.predict(X_test_full)

print("Classification Report:")
print(classification_report(y_test_full, y_pred))

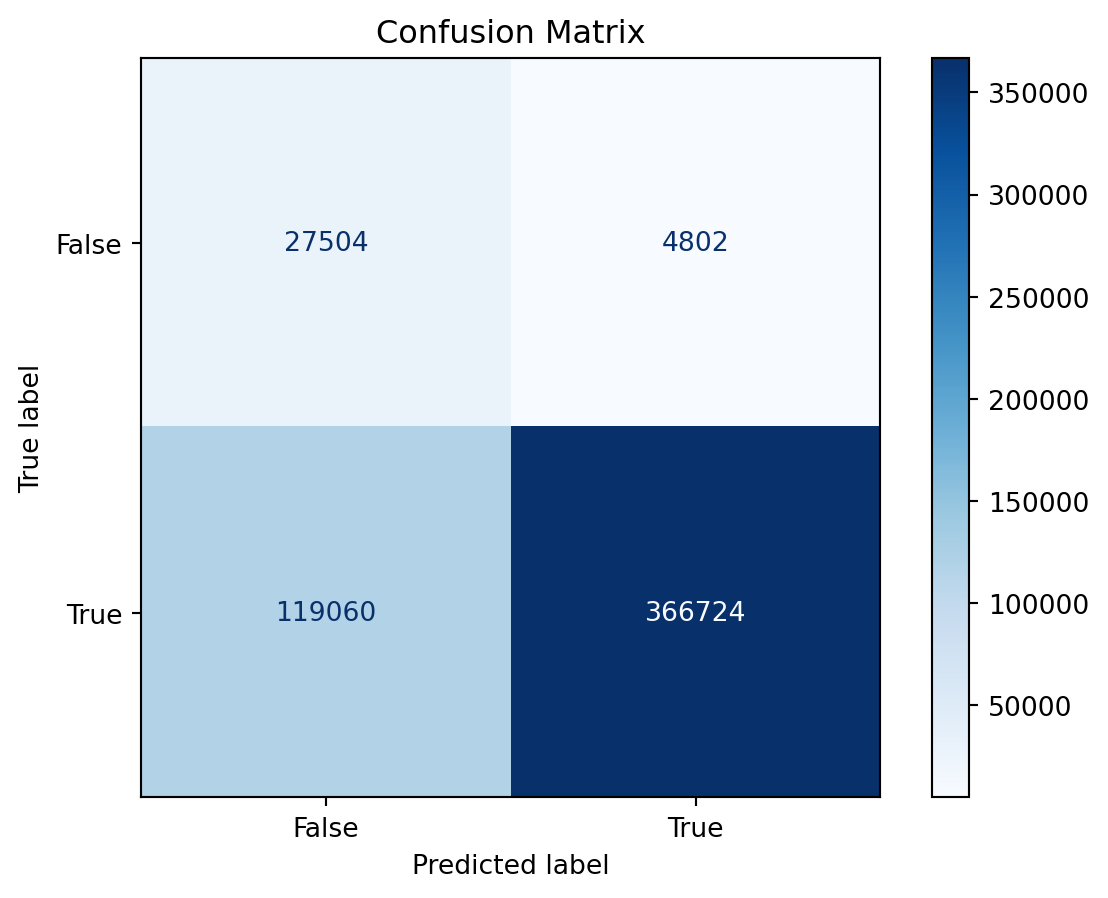

disp = ConfusionMatrixDisplay.from_estimator(
    final_model,
    X_test_full,
    y_test_full,
    cmap=plt.cm.Blues
)
disp.ax_.set_title('Confusion Matrix')
plt.show()

[Parallel(n_jobs=16)]: Using backend ThreadingBackend with 16 concurrent workers.
[Parallel(n_jobs=16)]: Done  18 tasks      | elapsed:    0.1s
[Parallel(n_jobs=16)]: Done 160 out of 160 | elapsed:    0.7s finished

Classification Report:
              precision    recall  f1-score   support

       False       0.19      0.85      0.31     32306
        True       0.99      0.75      0.86    485784

    accuracy                           0.76    518090
   macro avg       0.59      0.80      0.58    518090
weighted avg       0.94      0.76      0.82    518090

[Parallel(n_jobs=16)]: Using backend ThreadingBackend with 16 concurrent workers.
[Parallel(n_jobs=16)]: Done  18 tasks      | elapsed:    0.1s
[Parallel(n_jobs=16)]: Done 160 out of 160 | elapsed:    0.7s finished
